Machine Introduction

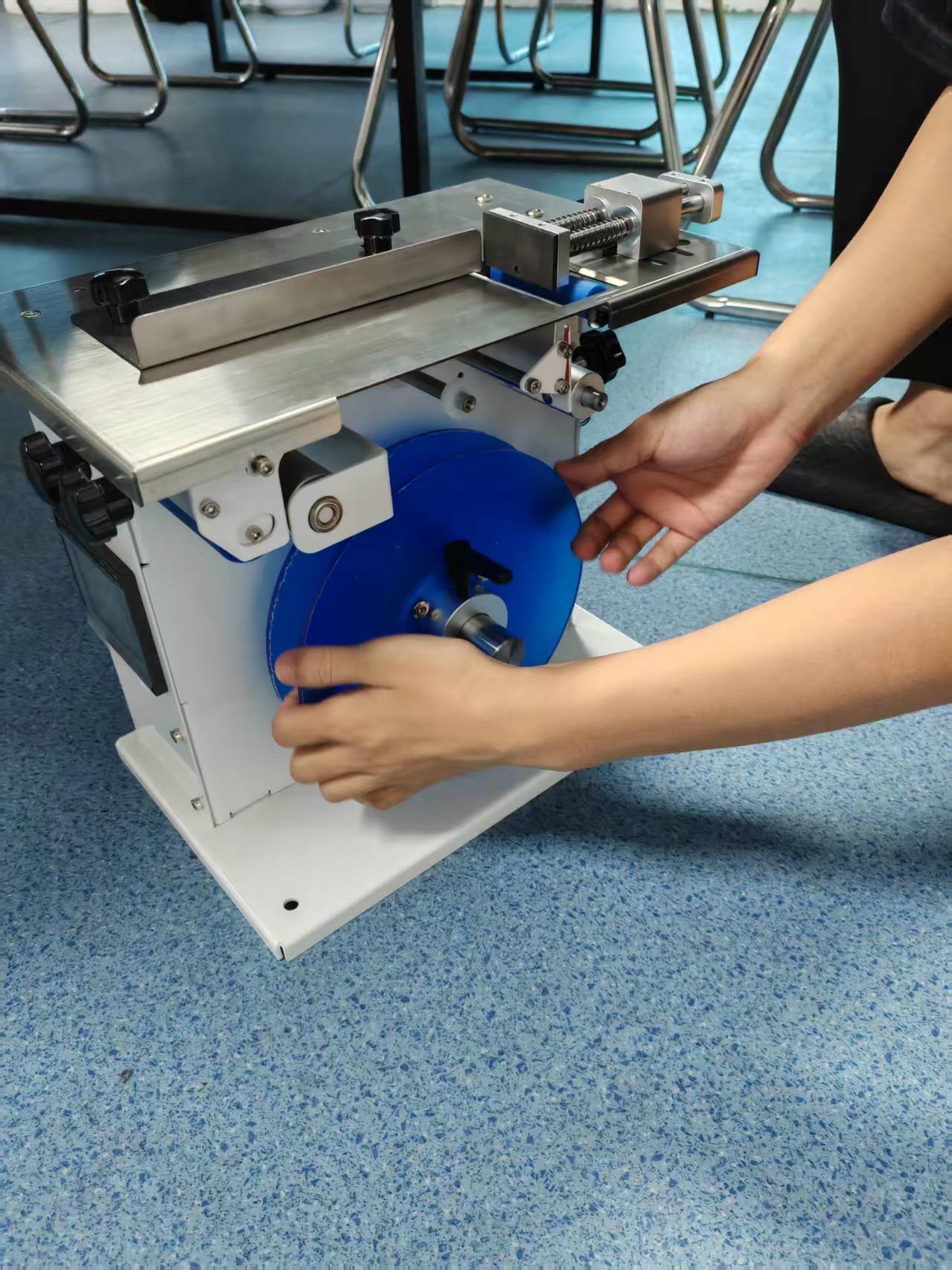

This carton corner labeling machine is an automatic corner sticker labeling equipment developed and manufactured by Changhaohuifeng. It is specially designed for pasting labels across carton corner, finish 90° corner wrapping labeling in one pass. Widely used for anti-counterfeit labels, seal labels, warranty labels on rectangular boxes. Adopts PLC + touch screen + photoelectric sensing control system. Stable labeling, easy adjustment, suitable for small and medium batch box packaging production. Free material sample test is available, we can customize according to your carton size and label specifications.
Applicable Products
Medicine cartons, cosmetic boxes, food packaging boxes, gift boxes, electronic product boxes, daily chemical product boxes and all kinds of rectangular paper cartons. For corner seal labels, anti-counterfeit stickers, tamper-evident labels, warranty stickers.
Main Features
- Realize one-time 90° corner cross labeling, label sticks across two adjacent sides of carton.
- Compact structure, optional desktop or stand type, flexible layout on production line.
- High labeling accuracy ±1.5mm, label neat without wrinkle or offset.
- PLC + touch screen control, parameter storage function, easy for operator to switch different products.
- Photoelectric sensor detects carton automatically, trigger labeling accurately.
- SUS304 stainless steel and aluminum alloy structure, clean and easy to maintain, fit GMP workshop for pharma & cosmetic.
- Adjustable conveying & labeling position, adapt different box sizes and label dimensions.
- Can work standalone or connect with cartoning machine, conveyor and other packaging lines; non-standard customization supported.
Technical Parameters
- Labeling Speed: 15–35 boxes/min (depends on carton size and label length)
- Labeling Accuracy: ±1.5mm
- Applicable Carton Size: Length 40–350mm; Width 30–200mm; Height 15–120mm
- Label Roll Inner Diameter: Φ76mm
- Max Outer Diameter of Label Roll: ≤250mm
- Voltage: 110V / 220V, 50–60Hz
- Machine Material: SUS304 stainless steel & aluminum alloy
- Machine Dimension: 1100×680×750mm
- Machine Weight: 108kg
Packaging & After-sales
Packed in standard export wooden case.
We provide lifetime free technical support.
1 year warranty for core electric components.
Free material testing before order; on-site installation, commissioning and operator training available.
Changhaohuifeng is a manufacturer with 20 years experience in automatic packaging equipment. We only provide matched automation solutions based on your actual materials, output and workshop conditions, no redundant fancy configurations. We have complete design, production, assembly, testing and after-sales system, good at standard and non-custom packaging machines for cosmetic and pharmaceutical industries.
