Double-sided Labeling Machine

# Double-sided Labeling Machine
## 1. Product Description

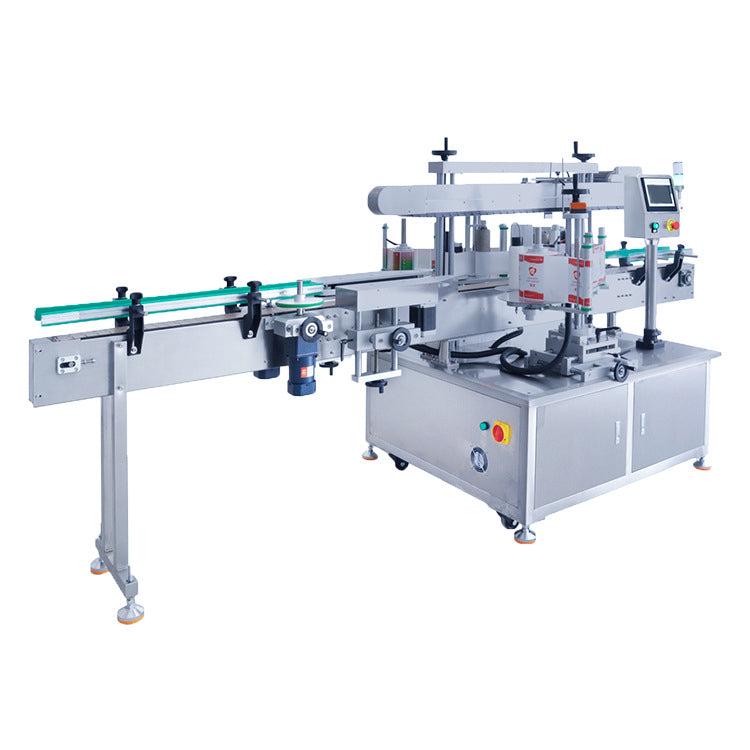

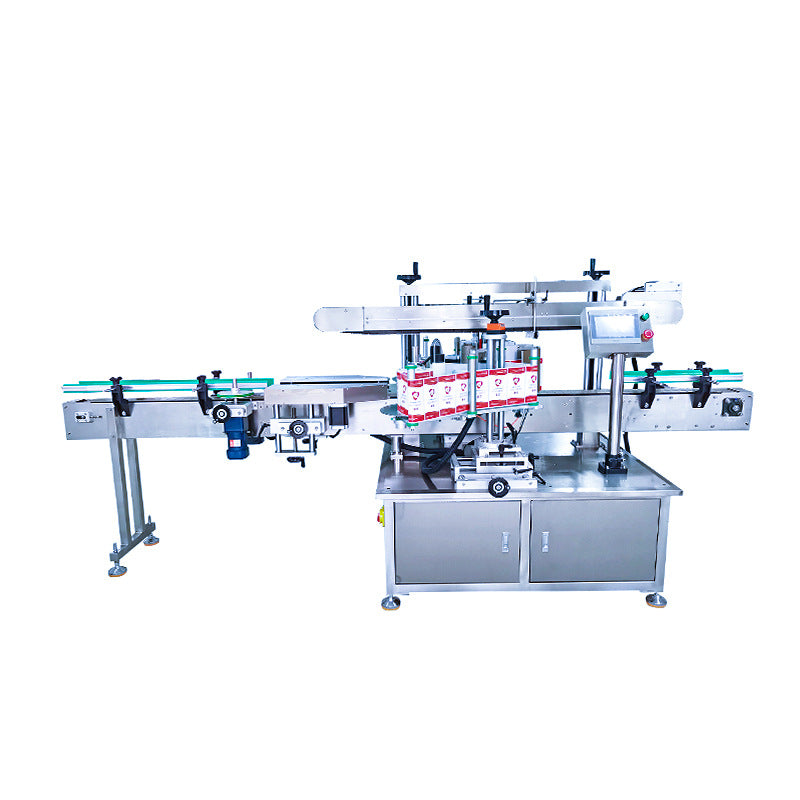

This automatic double-sided labeling machine is fitted with dual labeling heads to complete front and rear side labeling simultaneously in one conveying process. It adopts PLC intelligent control system and high-precision photoelectric positioning, with labeling position adjustable vertically, horizontally and longitudinally in multiple directions. The whole frame is made of SUS304 stainless steel, rustproof and easy to clean, meeting sanitary standards for food and pharmaceutical production. Featuring stable running and low failure rate, it is perfectly suitable for continuous mass pipeline production.

## 2. Technical Parameters
| Item | Specification |
| ---- | ---- |
| Applicable Containers | Square & flat bottles in plastic or glass material |
| Container Dimension | Height: 50~350mm; Width: 30~150mm (custom sizes available) |
| Label Size | Width:15~180mm; Length:20~300mm |
| Labeling Accuracy | ±1.5mm |
| Working Speed | 30~120 bottles per minute (varies with bottle shape) |
| Control System | PLC + touch screen + photoelectric sensor |
| Power Supply | 220V/50Hz, 1.2KW |
| Machine Material | SUS304 stainless steel |

## 3. Applicable Industries & Products
### Cosmetics & Daily Chemicals
Square lotion bottles, flat disinfectant bottles, square shampoo cans, square shower gel plastic bottles (front for brand label, back for ingredient specification label).

### Food & Beverage
Square sauce bottles, square edible oil cans, square fruit vinegar plastic bottles.

### Pharmaceuticals
Square medical disinfectant bottles, square oral liquid containers, square medicinal lotion bottles.

### Chemical Industry
Square detergent cans, square plastic bottles for industrial reagents.

## 4. Core Advantages
1. Dual heads synchronous operation, finishing double-side labeling with one feeding.
2. Multi-direction adjustable structure for strong compatibility with various irregular square bottles.
3. Stainless steel construction, hygienic and durable for rigorous production environments.
